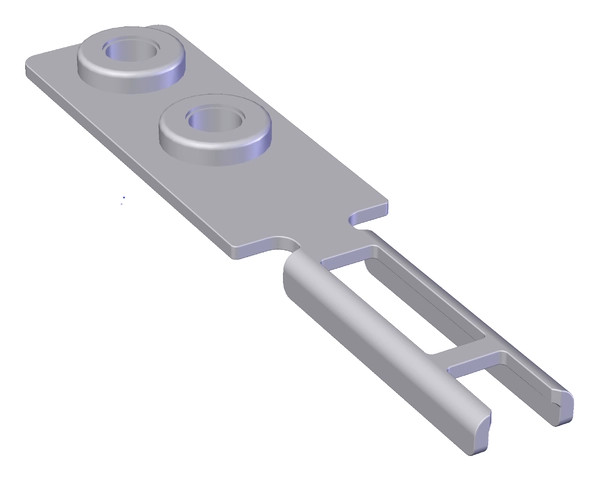

BETAETIGER-Q-GT (Order no. 103386)
Choose content
Actuator for safety switch NQ/TQ
- With rubber bush
- Minimum door radius 160 mm
- Maximum locking force 500 N
- Mounting aid included
Description
Dimensional drawings
| 1 | Insertion depth |
| 2 | mounted |
| 3 | Rubber bush |
| 4 | X and Y dimension, see operating instructions relating to the product |
| 5 | Mounting cap (included) |
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Overtravel | 1.3 ... 2.9 mm see operating instructions relating to the product |
| Door radius | min. 160 mm |
| Material | |
| Actuator | Stainless steel |
| Rubber bush | NBR |
Downloads
CAD data
Ordering data
| Ordernumber | 103386 |
| Item designation | BETAETIGER-Q-GT |
| Gross weight | 0,008kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
