FLUCHTHEBEL (Order no. 103376)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

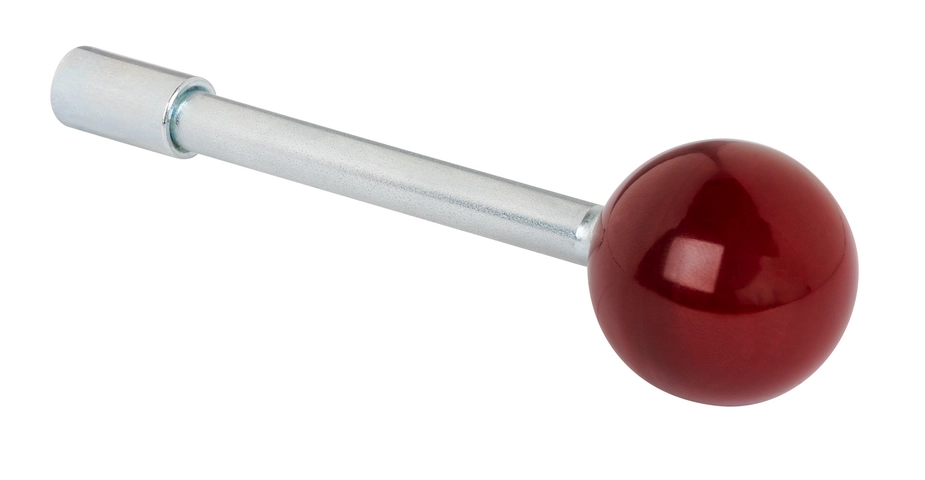

Escape lever for bolts

Escape lever for bolts to open or close the safety door in the work area
Plastic knob, color red
Mounting via sleeve with M8 internal thread

FLUCHTHEBEL (Order no. 103376)

Description

Dimension drawing

Dimensional drawings

Dimensional drawings

1	mounting; assembly
2	1. screw up escape lever 2) onto screw 1) M8.
3	2. secure the screw connection, e.g. with Loctite.

Technical data

Mechanical values and environment

Material
Bar	Galvanized steel
Ball	Plastic

Ordering data

Ordernumber	103376
Item designation	FLUCHTHEBEL
Gross weight	0,106kg
Customs tariff number	83014090000
