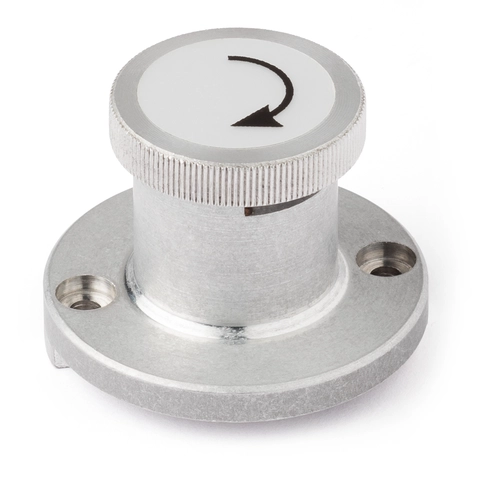

AE-R-A1-103110 (Order no. 103110)

Release with automatic reset for safety switch CTP/CTA/TP/STP/MGB2/MGBS

AE-R-A1-103110 (Order no. 103110)

Description

Is used for the manual release of the guard locking. The integrated spring automatically resets the release to the locked state.

Attention: Prior to mounting, the locking screw for the auxiliary release must be removed.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Material Aluminum

Miscellaneous

Detent mechanism no, resetting

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 103110
Item designation AE-R-A1-103110
Gross weight 0,038kg
Customs tariff number 85389099990
