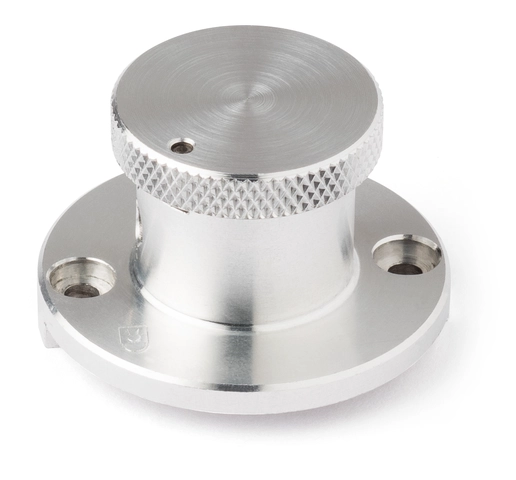

Emergency unlocking for safety switches CTP/TP/STP

Description
It is used for the manual release of the guard locking without tools. The emergency unlocking mechanism must be returned to the locked state manually. Sealing can be fitted to protect against tampering.
Attention: Prior to mounting, the locking screw for the auxiliary release must be removed.

Dimension drawing

Technical data
Mechanical values and environment
Material | Aluminum |
Other
Detent mechanism | Yes |
Accessories
