LED set
Description

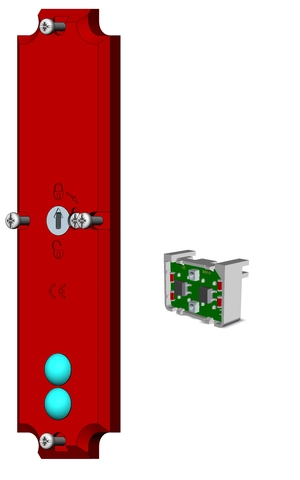

Consisting of cover with lamp caps, LED module with rectifier and two LEDs (green/ red). For retrofitting safety switches TP and STP with an LED indicator. Operating voltage AC/DC 24 V +10%, -15%.
Dimensional drawings
Technical data
Operating and display elements
| LED display | 2 LEDs, red and green |
Electrical connection values
| Display module | 24 V -15% ... +10% |
| Operating voltage | |
| LED | AC/DC 24 (LED with rectifier) |
