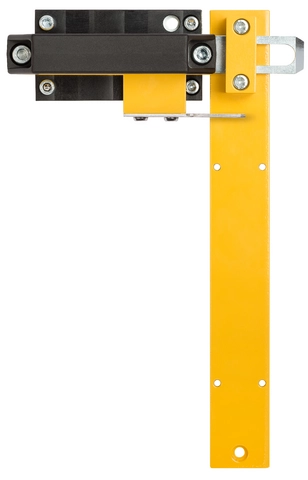

RIEGEL S-C (Order no. 096385)

Bolt S-... for safety switches STA, STP, SGP and SGA

  • Steel bolt
  • For doors hinged on the left
  • Can be locked in open position with padlocks
  • Actuator included
RIEGEL S-C (Order no. 096385)

Description

Benefits

  • Robust construction
  • Easily mounted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Notes

  • The bolts are suitable only for series STP.../STA.../SGA.../SGP...
  • Order safety switch separately
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1View D
2View B
3Stop screw locked
4Safety switch STP, STA, SGP, SGA approach direction C
5Safety guard frame (40x40)
6Door hinged on the left
7Attention! Bolt is not allowed to be used in conjunction with an escape release.

Technical data

Mechanical values and environment

Approach direction C
Number of safety switches that can be mounted 1
Escape release none
Material
Handle Plastic
Base plate Galvanized steel
Switch bracket Steel powder-coated
Guide strips Plastic

Miscellaneous

Detent mechanism none

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 096385
Item designation RIEGEL S-C
Gross weight 2,117kg
Customs tariff number 83014090000
