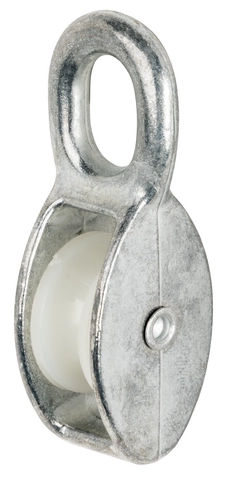

RPS-P-7-70 (Order no. 096251)

Pulley set RPS-P/V1 for rope pull switches

  • Rope pulley block Ø 14 mm
RPS-P-7-70 (Order no. 096251)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1)Rope diameter 2-7 mm

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Roller diameter 14 mm
Rope diameter 2 ... 7 mm
Material
Roller Polyamide
Rope pulley block Die-cast zinc

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 096251
Item designation RPS-P-7-70
Gross weight 0,085kg
Customs tariff number 85389099990
