BETAETIGER-S-WQT-SN (Order no. 095740)

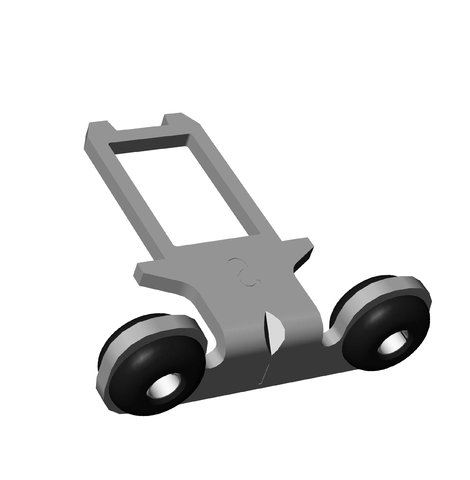

Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM

  • Two safety screws included
BETAETIGER-S-WQT-SN (Order no. 095740)

Description

Notice

S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.

Bent actuator

Suitable for a maximum tensile force of 1000 N.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_SGA_ET 22058_ET 22059

Mechanical values and environment

Storage temperature -25 ... 70 °C
Overtravel max. 5 mm
Door radius min. 300 mm
Material
Screw Stainless steel
Rubber bush NBR
Actuator Stainless steel
Locking force Fmax max. 1000 N reduced locking force by actuator

Miscellaneous

Usability of insertion funnel No

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 095740
Item designation BETAETIGER-S-WQT-SN
Gross weight 0,028kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
