NOTENTSPERRUNG TX (Order no. 094771)
Choose content

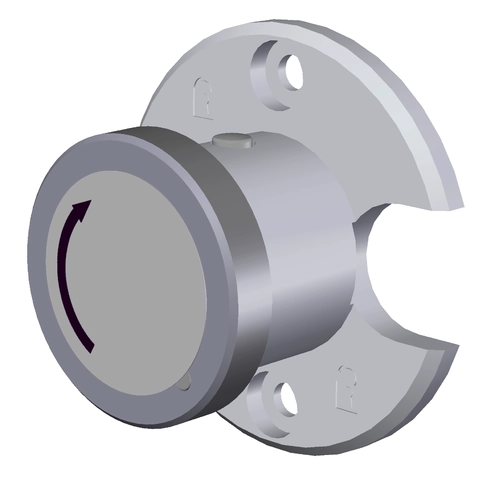

Emergency release with manual return for safety switch TX
Description
It is used for manual release of the guard locking without tools in an emergency. The emergency unlocking mechanism must be returned to the locked state manually. Sealing can be fitted to protect against tampering.
Attention: Prior to mounting, the locking screw for the auxiliary release must be removed.
Dimensional drawings
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Material | Aluminum |
Miscellaneous
| Detent mechanism | Yes |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)
Single Documents
Other Documents
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
CAD data
Ordering data
| Ordernumber | 094771 |
| Item designation | NOTENTSPERRUNG TX |
| Gross weight | 0,05kg |
| Customs tariff number | 85389099990 |
