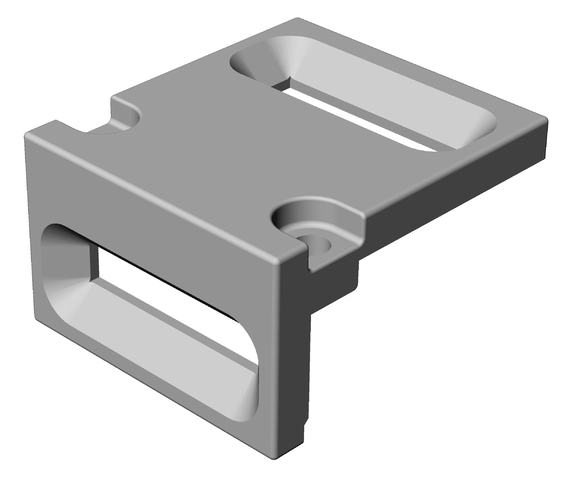

EINFUEHRTRICHTER-S (Order no. 093157)

Insertion funnel for safety switch SGP/STA/STP/STM/SGA

EINFUEHRTRICHTER-S (Order no. 093157)

Description

If an insertion funnel is used, even inexactly positioned actuators are inserted reliably in the actuating head due to the large opening funnel, thus protecting the safety switch against mechanical influences.

  • The insertion funnel for STP can only be used in conjunction with an actuator for insertion funnel

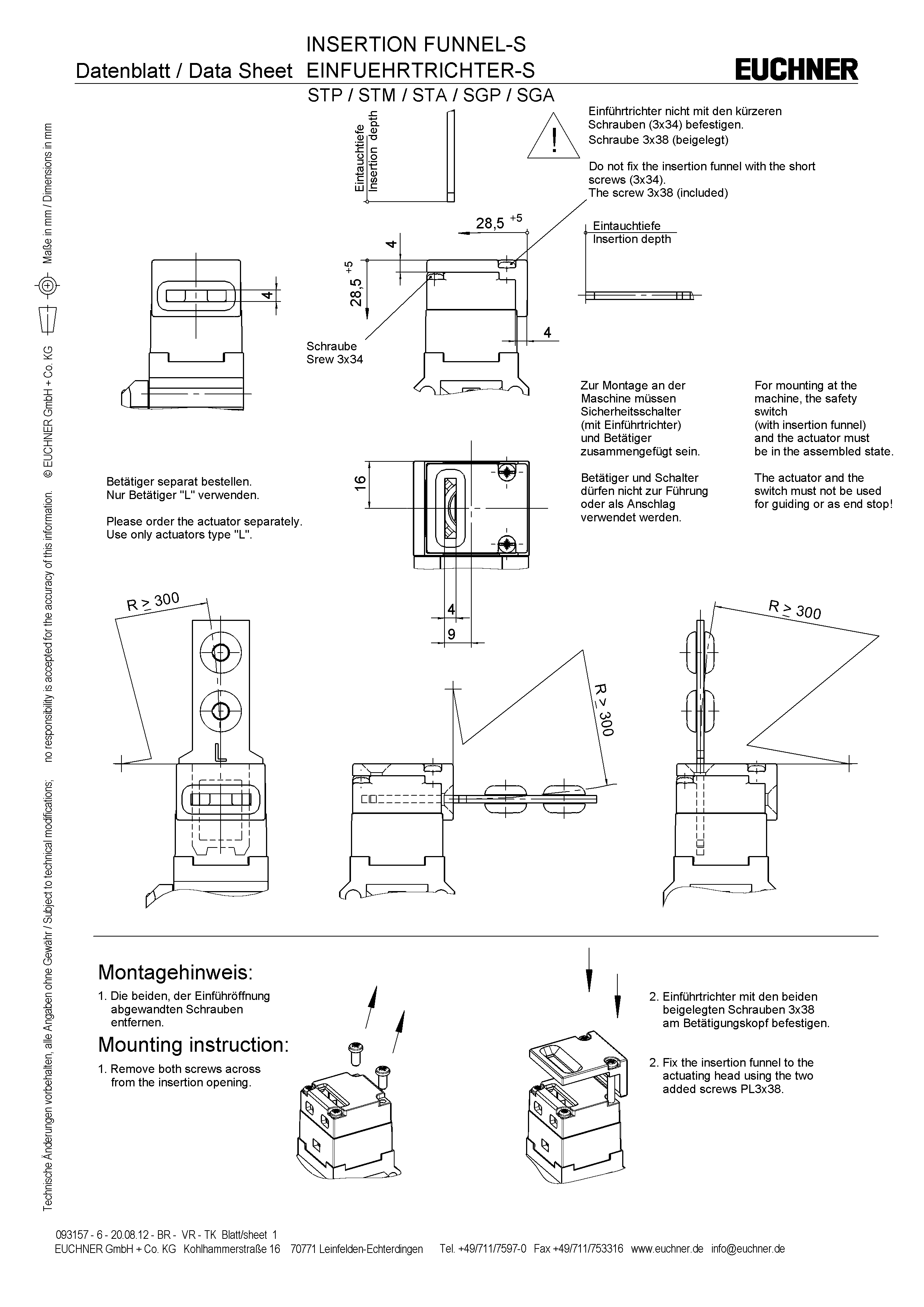

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Stainless steel

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 093157
Item designation EINFUEHRTRICHTER-S
Gross weight 0,04kg
Customs tariff number 85389099990
