RPS-RS/V5 (Order no. 092496)
Choose content

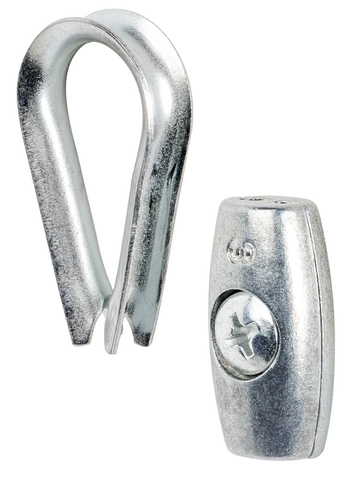

Rope set for rope pull switches
- Rope set consisting of thimble and rope clamp
Description
Dimensional drawings
| 1 | Cartridge |
| 2 | Rope clamp |
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Rope diameter | 3 mm |
| Material | Galvanized steel |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,7 MB)
Single Documents
Other Documents
Sales documents
Emergency Stop Devices/Rope Pull Switches
Doc. no.
Version
Language
Size
Emergency Stop Devices/Rope Pull Switches
Doc. no.
116448
Version
06-06/16
Language
Size
1,8 MB
Dispositifs d‘arrêt d‘urgence/interrupteurs à câble
Doc. no.
116529
Version
06-06/16
Language
Size
1,8 MB
Dispositivos de parada de emergencia / Interruptores de accionamiento por cable
Doc. no.
116530
Version
06-06/16
Language
Size
1,8 MB
Not-Halt-Geräte/Seilzugschalter
Doc. no.
106210
Version
06-06/16
Language
Size
1,8 MB
CAD data
Ordering data
| Ordernumber | 092496 |
| Item designation | RPS-RS/V5 |
| Gross weight | 0,108kg |
| Customs tariff number | 85389099990 |
