CES-A-BCA (Order no. 088786)
Choose content

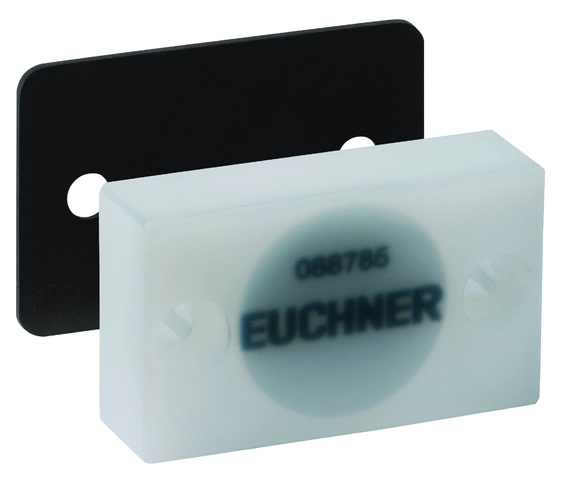

Actuator CES-A-BCA
- Cube-shaped design 42 x 25 mm
- Two safety screws M4x14 included
- PE-HD housing material, suitable for use in aggressive media (e.g. acids, alkalis)
Description
Dimensional drawings
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 0.5 Nm |
| Degree of protection | IP65/IP67 |
| Ambient temperature | -25 ... +50 °C |
| Material | |
| Flat seal | Flouro rubber 75FPM 4100 |
| Housing | Plastic, PE-HD, without reinforcement |
Components included in the set
| Included accessories | 2x safety screws M4x14, flat seal |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)
Single Documents
Other Documents
Approvals and certificates
DGUV
Doc. no.
Version
Language
Size
DGUV
Doc. no.
Version
Language
Size
1,0 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
c UL us
Doc. no.
Version
Language
Size
0,2 MB
Sales documents
Transponder-coded safety systems with external evaluation
Doc. no.
Version
Language
Size
Transponder-coded safety systems with external evaluation
Doc. no.
127597
Version
03-08/21
Language
Size
20,4 MB
CAD data
Ordering data
| Ordernumber | 088786 |
| Item designation | CES-A-BCA |
| Gross weight | 0,022kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
