EINBAULEUCHTE LED M20X1,5 (Order no. 087423)

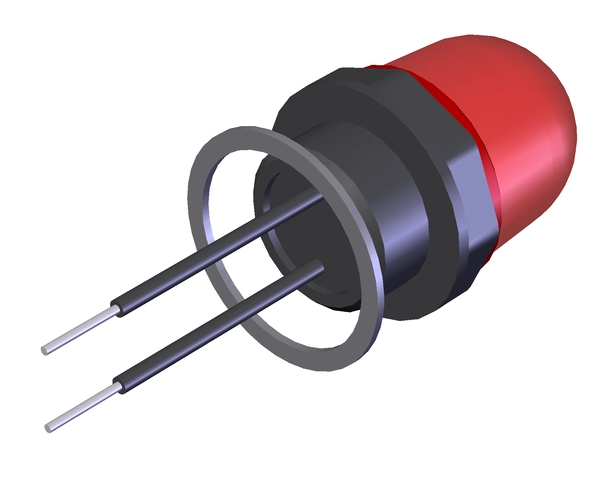

Built-in LED, light shines to side

EINBAULEUCHTE LED M20X1,5 (Order no. 087423)

Description

The built-in LED is suitable for direct installation in one of the M20 x 1.5 threads of the three cable entries of rope pull switch RPS and safety switches GP/TP/STP/STA. The built-in LED indicates to the operator whether the switch is actuated or not. The switching element can be wired individually. Operating voltage DC 24 V +10%, -15%.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

LED display 1 LED, red

Electrical connection values

Operating voltage
LED 24 V (LED with rectifier)

Mechanical values and environment

Thread M20x1,5
Degree of protection IP65
Material Plastic

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 087423
Item designation EINBAULEUCHTE LED M20X1,5
Gross weight 0,037kg
Customs tariff number 85389099990
