EKPM20/06 086233 (Order no. 086233)
Choose content

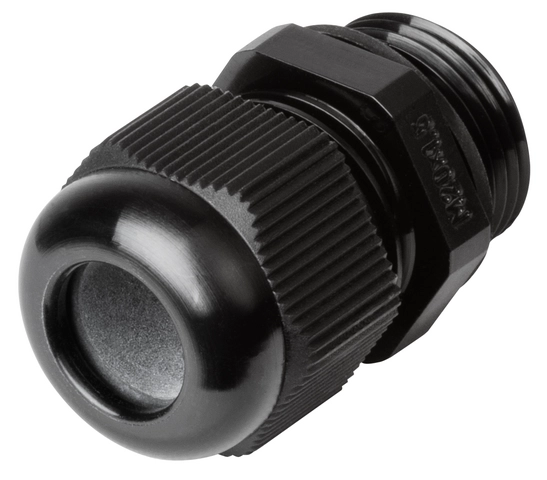

Cable glands M20x1.5, cable Ø 6-12 mm
Description
Cable glands M20x1.5
- M20x1.5
Cable glands
Suitable for various cable diameters. Versions available in plastic and metal.
| Item | Thread | Cable Ø [mm] | A [mm] | B [mm] | E [mm] | AF [mm] |
|---|---|---|---|---|---|---|
| EKPM20/06 | M20 x 1.5 | 6 - 12 | 26 | 11 | 27 | 24 |
Dimensional drawings
Technical data
Mechanical values and environment
| Thread | M20x1,5 |
| Storage temperature | -25 ... 70 °C |
| Degree of protection | IP68 |
| Material | Plastic |
Miscellaneous
| Additional feature | |
| Outer cable diameter | 6 ... 12 |
Downloads
Sales documents
Emergency Stop Devices/Rope Pull Switches
Doc. no.
Version
Language
Size
Emergency Stop Devices/Rope Pull Switches
Doc. no.
116448
Version
06-06/16
Language
Size
1,8 MB
Dispositifs d‘arrêt d‘urgence/interrupteurs à câble
Doc. no.
116529
Version
06-06/16
Language
Size
1,8 MB
Dispositivos de parada de emergencia / Interruptores de accionamiento por cable
Doc. no.
116530
Version
06-06/16
Language
Size
1,8 MB
Not-Halt-Geräte/Seilzugschalter
Doc. no.
106210
Version
06-06/16
Language
Size
1,8 MB
CAD data
Ordering data
| Ordernumber | 086233 |
| Item designation | EKPM20/06 086233 |
| Gross weight | 0,01kg |
| Customs tariff number | 85389099990 |
