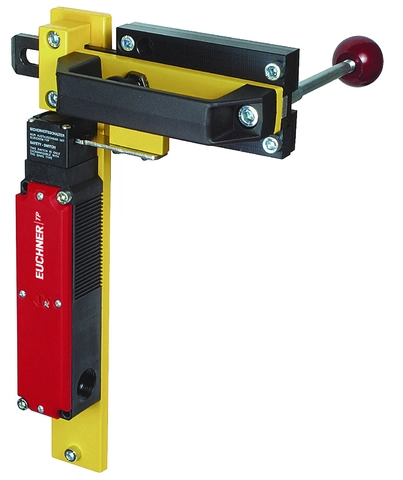

Bolt TP/GP... with escape release for safety switches GP and TP
- Steel bolt
- Lever for escape release from the danger zone
- For doors hinged on the right
- Detent knob in open position
- Can be locked in open position with padlocks
- Actuator included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
Special features
- Bolt with detent mechanism
- The bolt latches in open position to prevent unintentional closing of the bolt.
Notes
- The bolts are suitable for the series TP...A and GP
- Order safety switch separately
Dimensional drawings
1 | View B |
1) | Bolt with detent mechanism. Engages in open position. (Prevents unintentional closing of the bolt) Unlocked by pulling the detent knob upward. |
2 | Stop screw locked |
3 | Safety switch TP approach direction A |
4 | Included loose |
5 | Door hinged on the right |
6 | Safety guard frame (40x40) |
7 | On the actuation of the escape release for the switch, the actuator must not be subjected to a tensile load (e.g. due to strain on the doors or pulling the lever for the bolt) |
Technical data
Mechanical values and environment
Approach direction | A |
Number of safety switches that can be mounted | 1 |
Escape release | yes |
Material | |
Handle | Plastic |
Base plate | Galvanized steel |
Guide strips | Plastic |
Switch bracket | Steel powder-coated |
Miscellaneous
Detent mechanism open position | Bolt detent mechanism |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Instructions
Safety Information for Bolts
Doc. no.
Version
Language
Size
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,2 MB
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,1 MB
Other Documents
Sales documents
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
CAD data
Ordering data
Ordernumber | 086186 |
Item designation | RIEGEL TP-AF |
Gross weight | 2,1kg |
Customs tariff number | 83014090000 |
