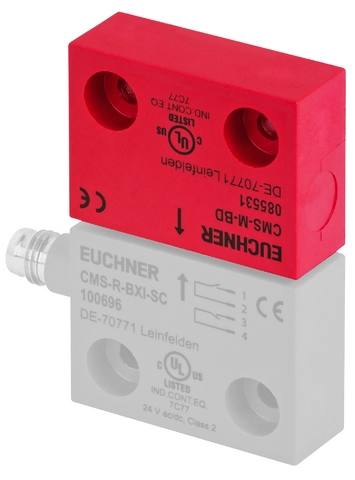

CMS-M-BD (Order no. 085531)
Choose content
Actuator CMS design B
- Cube-shaped version, 36 x 26 mm
Description
Dimensional drawings
Technical data
Approvals
Mechanical values and environment
| Tightening torque | 0.4 ... 0.5 Nm |
| Design | B |
| Storage temperature | -25 ... 70 °C |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... 60 °C |
| Material | |
| Housing | PPS |
| Method of operation | Magnetic |
Miscellaneous
| in compliance with | EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013 |
Downloads
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
1,0 MB
Sales documents
Interrupteurs de sécurité à codage magnétique CMS
Doc. no.
Version
Language
Size
Interrupteurs de sécurité à codage magnétique CMS
Doc. no.
090606
Version
10-11/20
Language
Size
5,8 MB
CAD data
Ordering data
| Ordernumber | 085531 |
| Item designation | CMS-M-BD |
| Gross weight | 0,027kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
