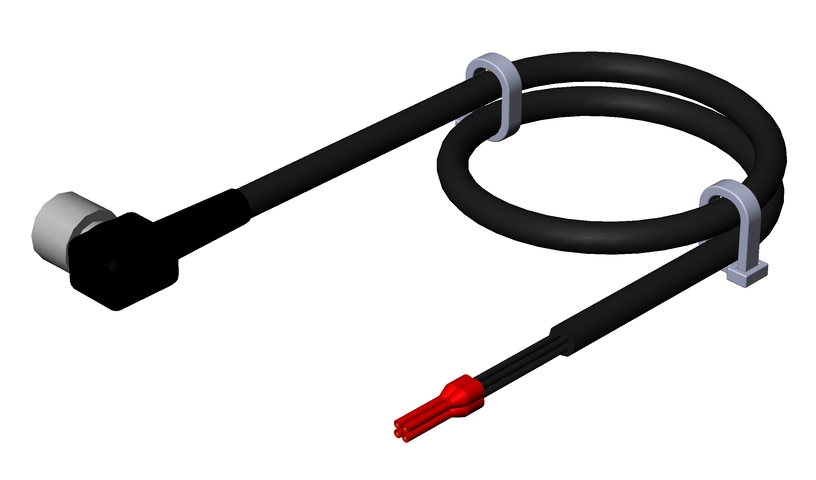

C-M08F04-04X025PV10,0-ES-084703 (Order no. 084703)

Connecting cable with angled plug connector M8, 4-pin, 10 m

  • M8 female plug, 4-pin
  • Angled plug connector
  • Cable exit A (right)
  • PVC cable
  • Cable length 10 m
  • With flying lead
C-M08F04-04X025PV10,0-ES-084703 (Order no. 084703)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
ACable outlet A (right)
CCable outlet C (left)

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E155795_5/1c_UL_us_E155795_3/2

Electrical connection values

Connection 1
Rated voltage 36 V

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.25 mm²
Number of conductors 4
Tightening torque 0.3 Nm
Dynamic bending radius 10 x cable diameter
Static bending radius 5 x cable diameter
Cable type straight
Cable diameter
approx. 4.3 mm
Cable length 10 m
Drag chain suitability no
Cable ambient temperature (dynamic) -5 ... +70 °C
Cable ambient temperature (static) -30 ... +80 °C
Material
Sheath PVC
Connection 2
Conductor end Cable end sleeve
Connection type flying lead
Connection 1
Connection type Plug connector M8x1
Connection type Female plug
Cable outlet Angle
Number of pins 4
Degree of protection IP67 (in the inserted state)
Plug lock Screw connection
Material
Plug housing TPU

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 084703
Item designation C-M08F04-04X025PV10,0-ES-084703
Gross weight 0,359kg
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
