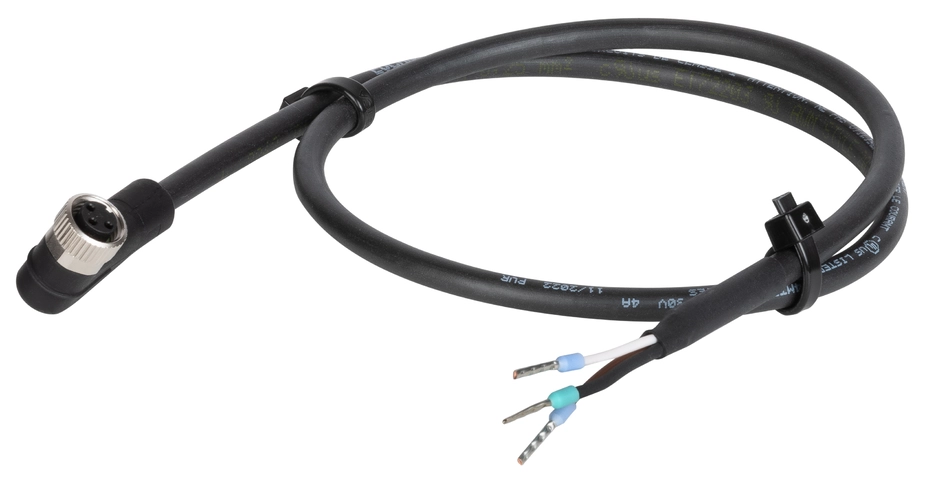

C-M08F03-02X025PV10,0-ES-084701 (Order no. 084701)

Connecting cable with angled plug connector M8, 3-pin, 10m

  • M8 female plug, 3-pin
  • Angled plug connector
  • Cable exit C (left)
  • PVC cable
  • Cable length 10 m
  • With flying lead
C-M08F03-02X025PV10,0-ES-084701 (Order no. 084701)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
ACable outlet A (right)
CCable outlet C (left)

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E155795_3/2

Electrical connection values

Rated voltage
DC 60 V
Rated impulse voltage Uimp 1.5 kV
Test voltage 0.5 kV
Cable shielding Yes
specific inductance 0.65 mH/km
specific capacitance 120 nF/km
specific capacitance 160 nF/km
specific conductor resistance
at 20 °C max. 79 Ω/km
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.25 mm²
Number of conductors 2
Tightening torque 0.4 Nm
Dynamic bending radius 10x cable diameter
Static bending radius 5x cable diameter
Fire behavior self-extinguishing and flame retardant according to IEC 60332-1-2
Insulating material group II
Storage temperature -25 ... 80 °C
Cable type straight
Cable diameter
approx. 4.6 mm
Cable length 10 m
Sheath color black
Resistance to media largely resistant to certain oils, acids and alkalis
Drag chain suitability No
Silicone-free Yes
Cable ambient temperature (dynamic) -5 ... 70 °C
Cable ambient temperature (static) -25 ... 80 °C
UV resistance yes
Material
Conductor Cu flexible wire bare
Sheath PVC
Conductor insulation PVC
Connection 2
Conductor end Cable end sleeve
Connection type flying lead
Connection 1
Connection type Plug connector M8x1
Connection type Female plug
Plug connector designation M8x1
Cable outlet Angle
Number of pins 3
Degree of protection IP67
Plug lock Screw connection
Insertion cycles 100
Material
Plug housing PUR
Plug lock CuZn, nickel plated

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 084701
Item designation C-M08F03-02X025PV10,0-ES-084701
Gross weight 0,321kg
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
