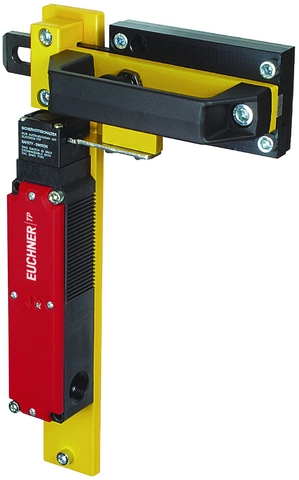

Bolt TP/GP... for safety switches GP and TP
- Steel bolt
- For doors hinged on the right
- Can be locked in open position with padlocks
- Actuator included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
- Actuator included
Notes
- The bolts are suitable for the series TP...A and GP
- Order safety switch separately
Integrated lockout bar
With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.
Door types and door hinges
Suitable for hinged and sliding doors
Suitable for doors hinged on the right
With door hinge, door cannot be opened inwards.
Scope of delivery
- Bolt parts
- Actuators
To be ordered separately:
- Safety switch
Dimensional drawings
1 | View B |
2 | Attention! Bolt is not allowed to be used in conjunction with an escape release! |
3 | Safety switch TP approach direction A |
4 | Door hinged on the right |
5 | Safety guard frame (40x40) |
Technical data
Mechanical values and environment
Approach direction | A |
Number of safety switches that can be mounted | 1 |
Escape release | none |
Material | |
Switch bracket | Steel powder-coated |
Handle | Plastic |
Base plate | Galvanized steel |
Guide strips | Plastic |
Miscellaneous
Detent mechanism | none |
