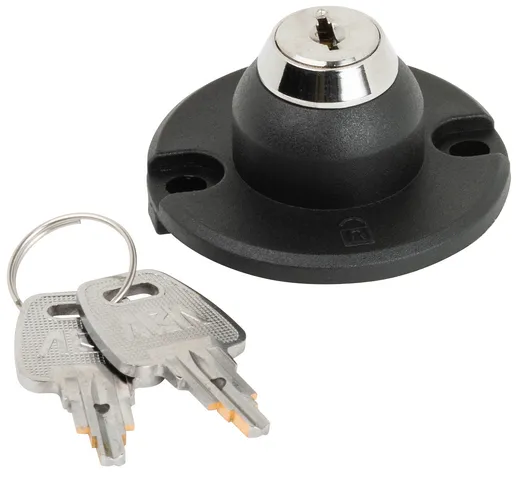

AE-K-A1-DULK1-84177 (Order no. 084177)

Lock for auxiliary release for safety switch CTP/CTA/TP/STP

  • Lock unique locking
  • Key removable in “unlocked” and “locked” positions
AE-K-A1-DULK1-84177 (Order no. 084177)

Description

The lock is used in combination with safety switch CTP/TP/STP. The auxiliary key release enables authorized personnel to actuate the auxiliary release using the related key. The unlocking mechanism holds the solenoid in the “unlocked” position. 2 screws are used to fix the lock to the cover of the safety switch (above the auxiliary release).

  • Order safety switch CTP/TP/STP separately
  • 2 keys are included
  • Every safety switch of the series CTP/TP/ STP can be upgraded to include a lock.
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1locked
2Released

Dimensional drawings

Dimensional drawings
1Auxiliary release (basic position)
2Locking screw

Technical data

Mechanical values and environment

Removal position two (0° and 180°)
Closing type unique locking
Material Plastic (Lock: metal)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 084177
Item designation AE-K-A1-DULK1-84177
Gross weight 0,028kg
Customs tariff number 85389099990
