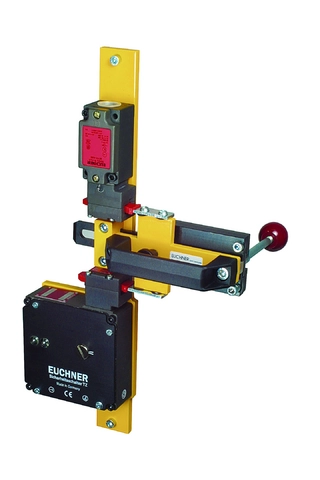

Bolt NZ/TZ-ACF with escape release for safety switches NZ.VZ and TZ with escape release
- Steel bolt
- For doors hinged on the right or left
- Lever for escape release from the danger zone
- Detent knob in open position
- Can be locked in open position with padlocks
- Bolt for two safety switches
- Actuator included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
Special features
- One bolt for 2 safety switches (NZ and TZ with guard locking)
- A higher safety category according to EN ISO 13849-1 (e.g. category 4) is achieved
- Bolt with detent mechanism
- The bolt latches in open position to prevent unintentional closing of the bolt
Scope of delivery
- Bolt parts
- Actuators
To be ordered separately:
- Safety switch
Dimensional drawings
| 1 | Safety switch TZ approach direction C |
| 1) | Bolt with detent mechanism. Engages in open position. (Prevents unintentional closing of the bolt) Unlocked by pulling the detent knob upward. |
| 2 | Safety switch NZ.VZ approach direction A |
| 3 | Door hinged on the left |
| 4 | Safety guard frame (40x40) |
| 5 | Spacer plate NZ |
| 6 | Safety switch and tongue receptacle can also be fastened to the rear of the switch bracket. |
| 7 | View D |
Technical data
Mechanical values and environment
| Approach direction | A or C |
| Number of safety switches that can be mounted | 2 |
| Escape release | yes |
| Material | |
| Handle | Plastic |
| Guide strips | Plastic |
| Switch bracket | Steel powder-coated |
| Base plate | Galvanized steel |
Miscellaneous
| Detent mechanism open position | Bolt detent mechanism |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Instructions
Safety Information for Bolts
Doc. no.
Version
Language
Size
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,2 MB
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,1 MB
Other Documents
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
CAD data
Ordering data
| Ordernumber | 083900 |
| Item designation | RIEGEL NZ/TZ-ACF |
| Gross weight | 3,078kg |
| Customs tariff number | 83014090000 |
