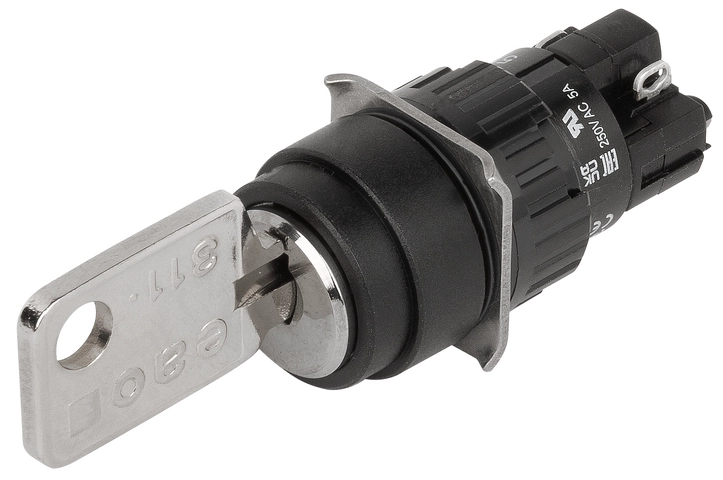

SCHLUESSELSCHALTER RUND (Order no. 083639)
Choose content
Key-operated rotary switch
Description

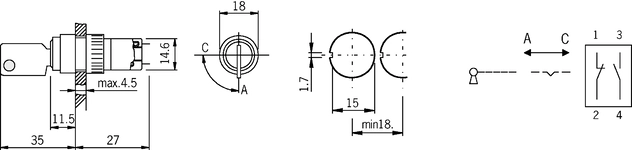

Dimensional drawings
Technical data
Electrical connection values
| Contact resistance | max. 50 mΩ New value |
| Switching voltage | |
| AC/DC | max. 250 V |
| Switching current | max. 5 mA |
| Switching characteristics | Latching function |
Mechanical values and environment
| Connection type | Soldered connection |
| Number of switching elements | 2 1 NO contact, 1 NC contact |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 2 x 10⁶ |
| Switching principle | Snap-action switching element |
| Degree of protection | IP65 (in the installed state) |
| Ambient temperature | -25 ... 55 °C |
Miscellaneous
| Color | black |
| Additional information | |
| Key removable in both positions | |
| 2 Switching positions |
Downloads
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
Sales documents
Commandes d’Assentiment ZS
Doc. no.
Version
Language
Size
Commandes d’Assentiment ZS
Doc. no.
097367
Version
09-02/21
Language
Size
10,2 MB
Enabling switches ZS
Doc. no.
Version
Language
Size
Enabling switches ZS
Doc. no.
095690
Version
09-02/21
Language
Size
10,1 MB
Zustimmtaster ZS
Doc. no.
Version
Language
Size
Zustimmtaster ZS
Doc. no.
095689
Version
09-02/21
Language
Size
10,2 MB
Ordering data
| Ordernumber | 083639 |
| Item designation | SCHLUESSELSCHALTER RUND |
| Gross weight | 0,028kg |
| Customs tariff number | 85389099990 |
