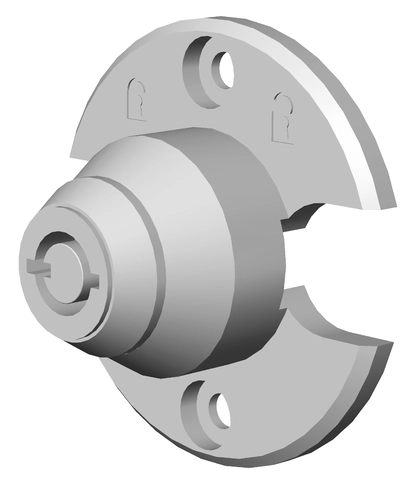

SCHLOSS TX GLEICHSCHLIESSEND (Order no. 079795)

Lock for auxiliary release with automatic return for safety switches TX

SCHLOSS TX GLEICHSCHLIESSEND (Order no. 079795)

Description

The lock is used in combination with safety switch TX. The auxiliary key release enables authorized personnel to actuate the auxiliary release using the related key. The unlocking mechanism holds the solenoid in the “unlocked” position. 2 screws are used to fix the lock to the cover of the safety switch TX (above the auxiliary release).

  • Please order safety switch TX separately
  • 2 keys are included
  • Every safety switch of series TX can be upgraded to include a lock
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Removal position two (0° and 180°)
Storage temperature -25 ... 70 °C
Closing type identical locking
Material Plastic (Lock: metal)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 079795
Item designation SCHLOSS TX GLEICHSCHLIESSEND
Gross weight 0,038kg
Customs tariff number 85389099990
