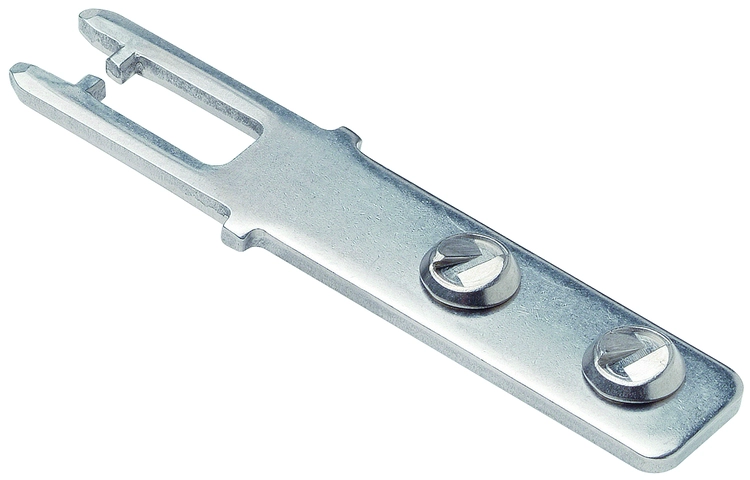

BETAETIGER-P-GN (Order no. 074570)
Choose content
Actuator for safety switch NP/GP/TP, increased overtravel
- Actuator made of stainless steel
- Two stainless-steel safety screws per actuator
Description
Straight actuator
The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Dimensional drawings
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Overtravel | max. 7 mm |
| Door radius | min. 1000 mm |
| Material | |
| Actuator | Stainless steel |
| Screw | Stainless steel |
Miscellaneous
| Usability of insertion funnel | Yes |
Accessories
Downloads
Sales documents
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
CAD data
Ordering data
| Ordernumber | 074570 |
| Item designation | BETAETIGER-P-GN |
| Gross weight | 0,031kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
