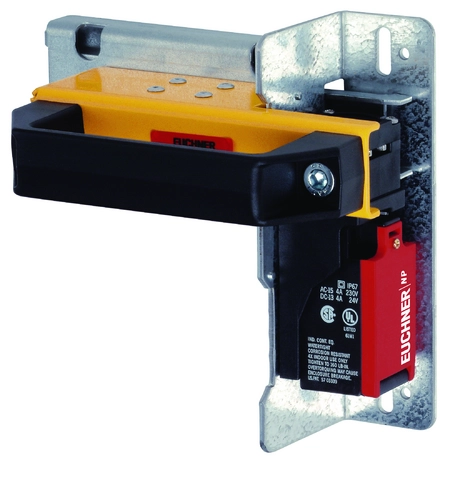

Bolt 1 NP/TP for safety switches NP, GP and TP
- Steel bolt
- For doors hinged on the left or right
- Can be locked in open position with padlocks
- Actuator included
- Detent mechanism closed position
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- Symmetrical design for doors hinged on the right or left
- No additional door handle necessary
- Automatic detent mechanism to retain position of the bolt when pushed to its end position
- Detent mechanism prevents unintentional opening of the hinged door
- Bolt for safety switches NP...AS and TP...A are identical
Notes
- Switch bracket NP is suitable only for series NP...AS
- Switch bracket TP is suitable only for series TP...A and GP
- Order safety switch and switch bracket separately (see accessories).
Dimensional drawings
1 | Approach direction |
2 | After adjustment connect positively. |
3 | Safety guard frame (40x40) |
4 | Door hinged on the left |
5 | Switch bracket TP |
6 | Bolt, NP/TP |
7 | Door hinged on the right |
8 | Actuator for detent mechanism (073536) |
Dimensional drawings
Technical data
Mechanical values and environment
Approach direction | A or C |
Number of safety switches that can be mounted | 1 |
Escape release | none |
Material | |
Guide strips | Steel powder-coated |
Base plate | Galvanized steel |
Handle | Plastic |
Miscellaneous
Detent mechanism open position | Bolt detent mechanism |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Instructions
Safety Information for Bolts
Doc. no.
Version
Language
Size
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,2 MB
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,1 MB
Other Documents
Sales documents
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
CAD data
Ordering data
Ordernumber | 073536 |
Item designation | RIEGEL 1 NP/TP 1X RASTUNG ZU |
Gross weight | 0,842kg |
Customs tariff number | 83014090000 |
