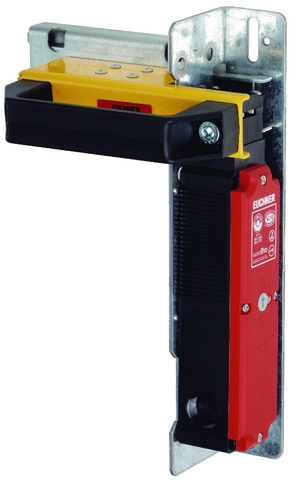

RIEGEL 0 NP/TP OHNE RASTUNG (Order no. 073535)

Bolt for safety switch NP, GP and TP

  • Bolt for safety switch NP... and TP...A
  • Steel bolt
  • For doors hinged on the left or right
  • Suitable for a door gap of approx. 6 mm
RIEGEL 0 NP/TP OHNE RASTUNG (Order no. 073535)

Description

Combination options

Safety switch NP...AS
Safety switch GP
Safety switch TP, without escape release

Scope of delivery

  • Bolt parts

  • Actuators


To be ordered separately:


  • Safety switch

  • Switch bracket

Door types and door hinges

Suitable for hinged or sliding doors Suitable for doors hinged on the left and right With door stop, door cannot be opened inwards.

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Approach direction
2After adjustment connect positively.
3Safety guard frame (40x40)
4Door hinged on the left
5Switch bracket TP
6Bolt, NP/TP
7Door hinged on the right
8Actuator for detent mechanism (073536)

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release none
Material
Base plate Galvanized steel
Guide strips Steel powder-coated
Handle Plastic

Miscellaneous

Detent mechanism none
