CES-A-BBA-071840 (Order no. 071840)

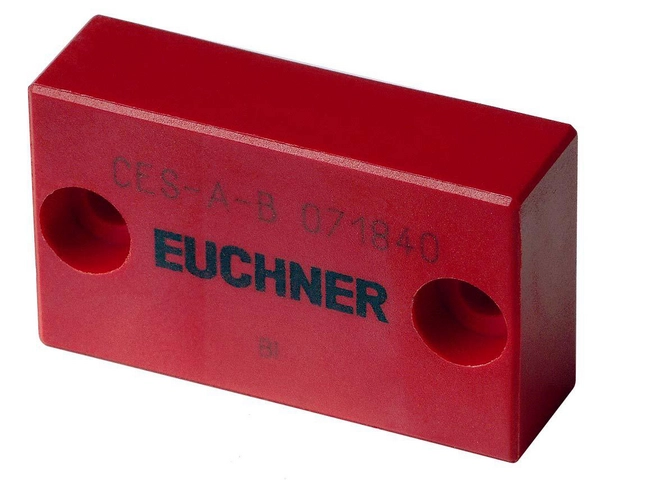

Actuator CES-A-BBA

  • Cube-shaped design 42 x 25 mm
  • Two safety screws M4x14 included
CES-A-BBA-071840 (Order no. 071840)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_ET 21020_ET21021c_UL_us_E155795_3/1

Workspace

Actuator distance s
Minimum distance for side approach direction min. 4 mm
Switch-on distance
with center offset m=0 18 mm (for non-flush mounting; assembly of the actuator on metal)
Secured switch-off distance sar
with center offset m=0 max. 45 mm (for non-flush mounting; assembly of the actuator on metal)
Secured switching distance sao
with center offset m=0 min. 15 mm (for non-flush mounting; assembly of the actuator on metal)
Switching hysteresis
with center offset m=0 1 ... 3 mm (for non-flush mounting; assembly of the actuator on metal)

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Tightening torque
Fixing screws max. 1 Nm
Degree of protection IP65/IP67/IP69/IP69K
Ambient temperature -25 ... +70 °C
Material
Housing Plastic (PPS)

Components included in the set

Included accessories 2x safety screws M4x14

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,8 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 071840
Item designation CES-A-BBA-071840
Gross weight 0,023kg
Global Trade Item Number (GTIN) 4047048000223
Customs tariff number 85389099990
ECLASS 27-27-24-04 Actuator for safety-related proximity switch
