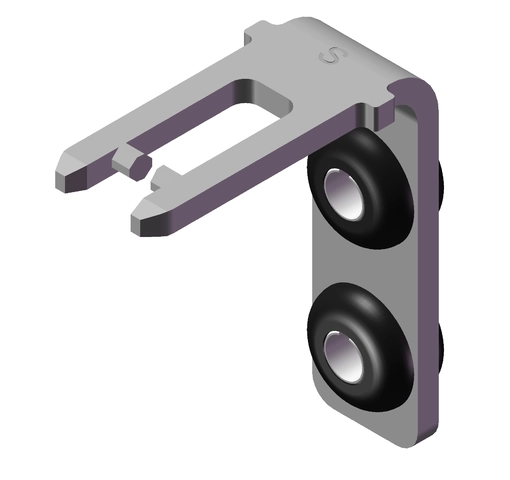

BETAETIGER-P-WT (Order no. 070038)
Choose content
Bent actuator for safety switch NP/GP/TP
- Actuator made of stainless steel
- Two stainless-steel safety screws per actuator
- Actuator with rubber bush
Description
Actuator with rubber bush
For flexible mounting of the actuator.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.

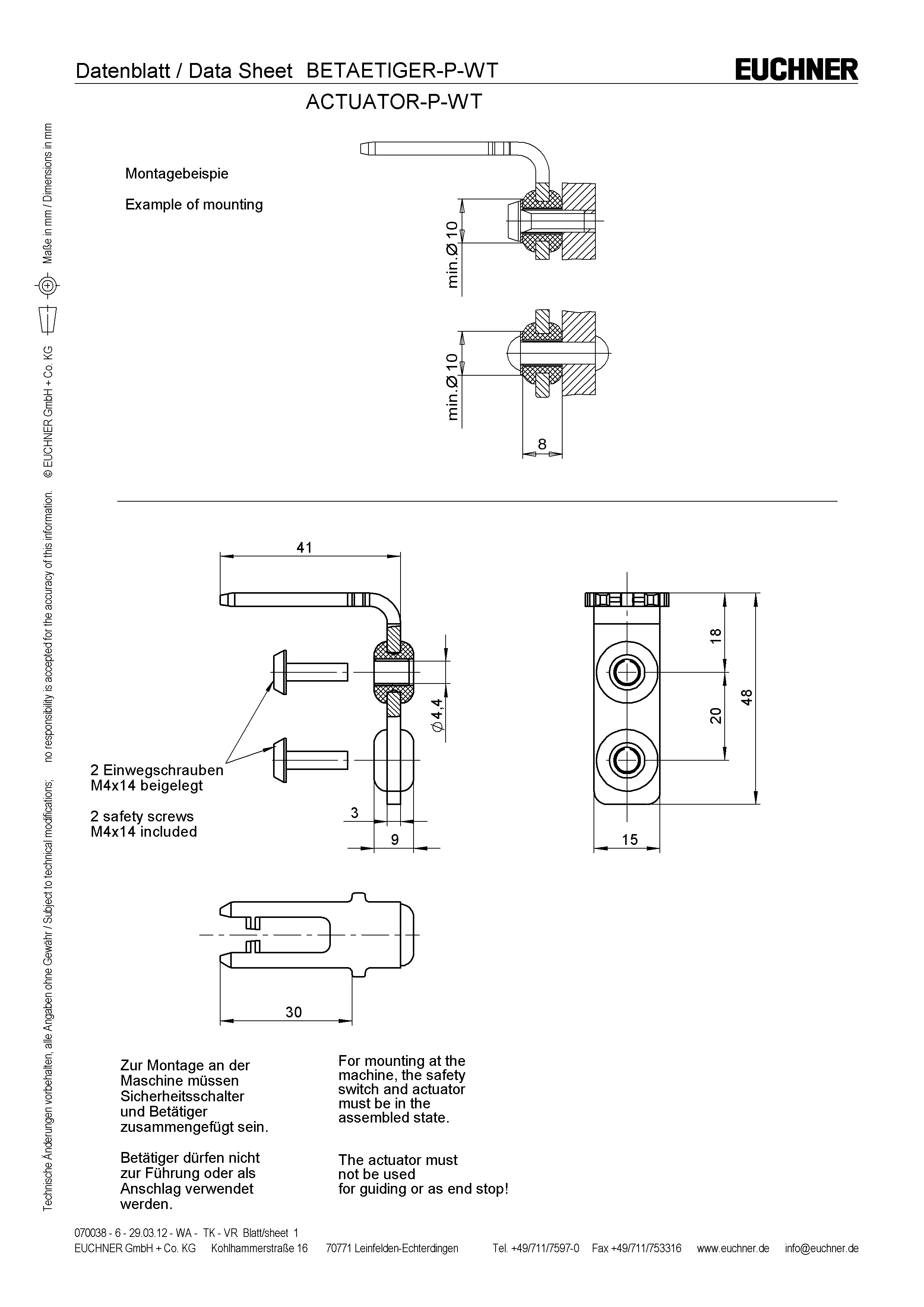

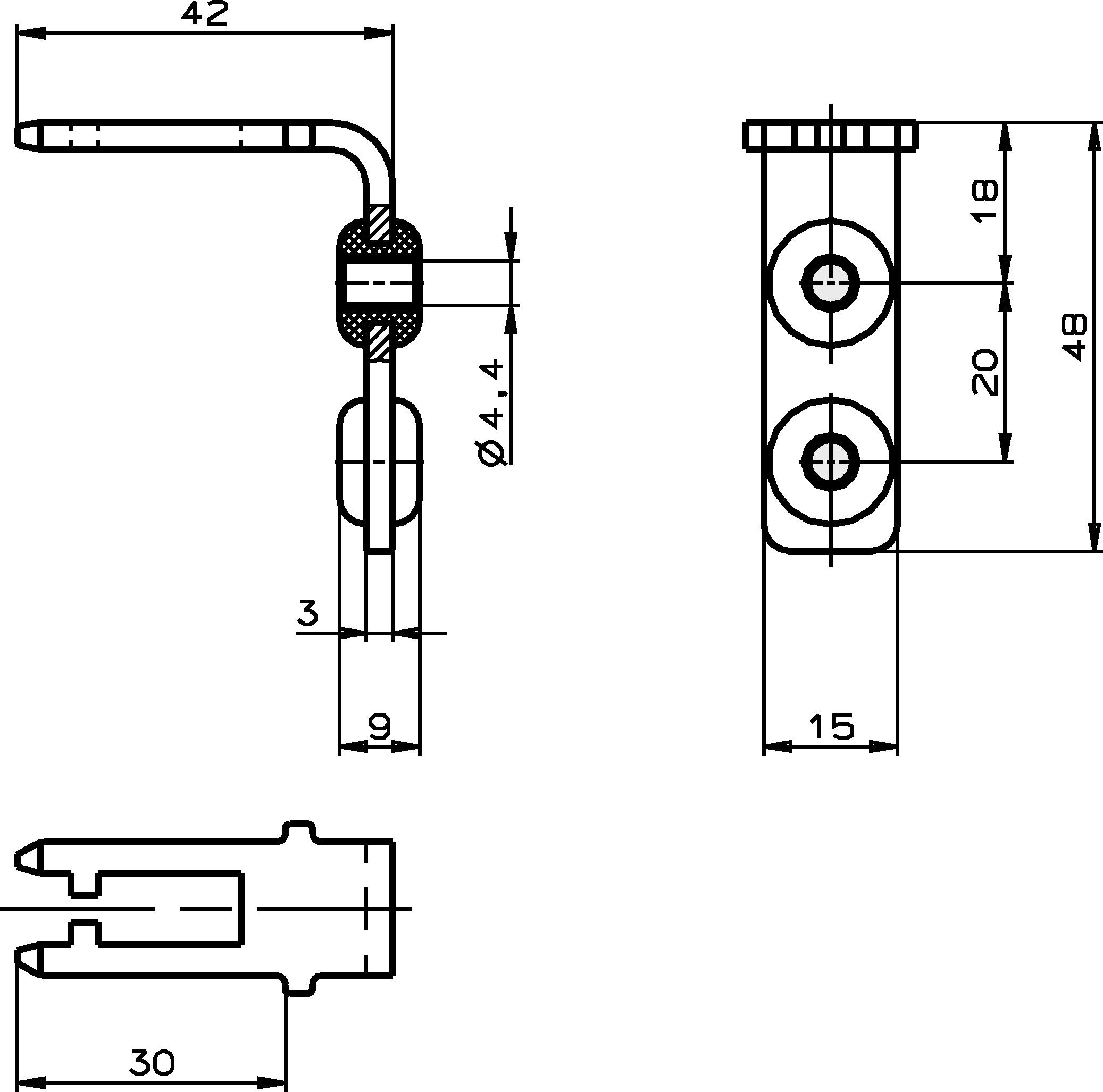

Dimensional drawings
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Overtravel | max. 2 mm |
| Door radius | min. 1000 mm |
| Material | |
| Actuator | Stainless steel |
| Screw | Stainless steel |
| Rubber bush | NBR |
Miscellaneous
| Usability of insertion funnel | No |
Accessories
Downloads
Sales documents
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
CAD data
Ordering data
| Ordernumber | 070038 |
| Item designation | BETAETIGER-P-WT |
| Gross weight | 0,031kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
