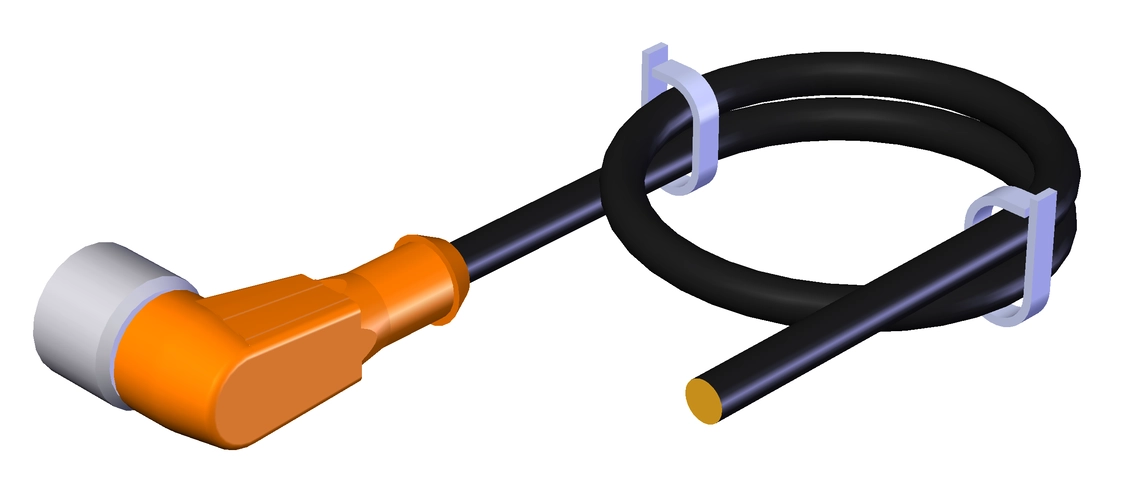

C-M12F04-04X034PU05,0-GA-035618 (Order no. 035618)

Connecting cable with plug connector M12

  • M12 female plug, 4-pin
  • Angled plug connector
  • PUR cable
  • Halogen-free
  • Cable length 5 m
  • With flying lead
  • Cores color-coded
C-M12F04-04X034PU05,0-GA-035618 (Order no. 035618)

Description

Dimension drawing
Dimension drawing

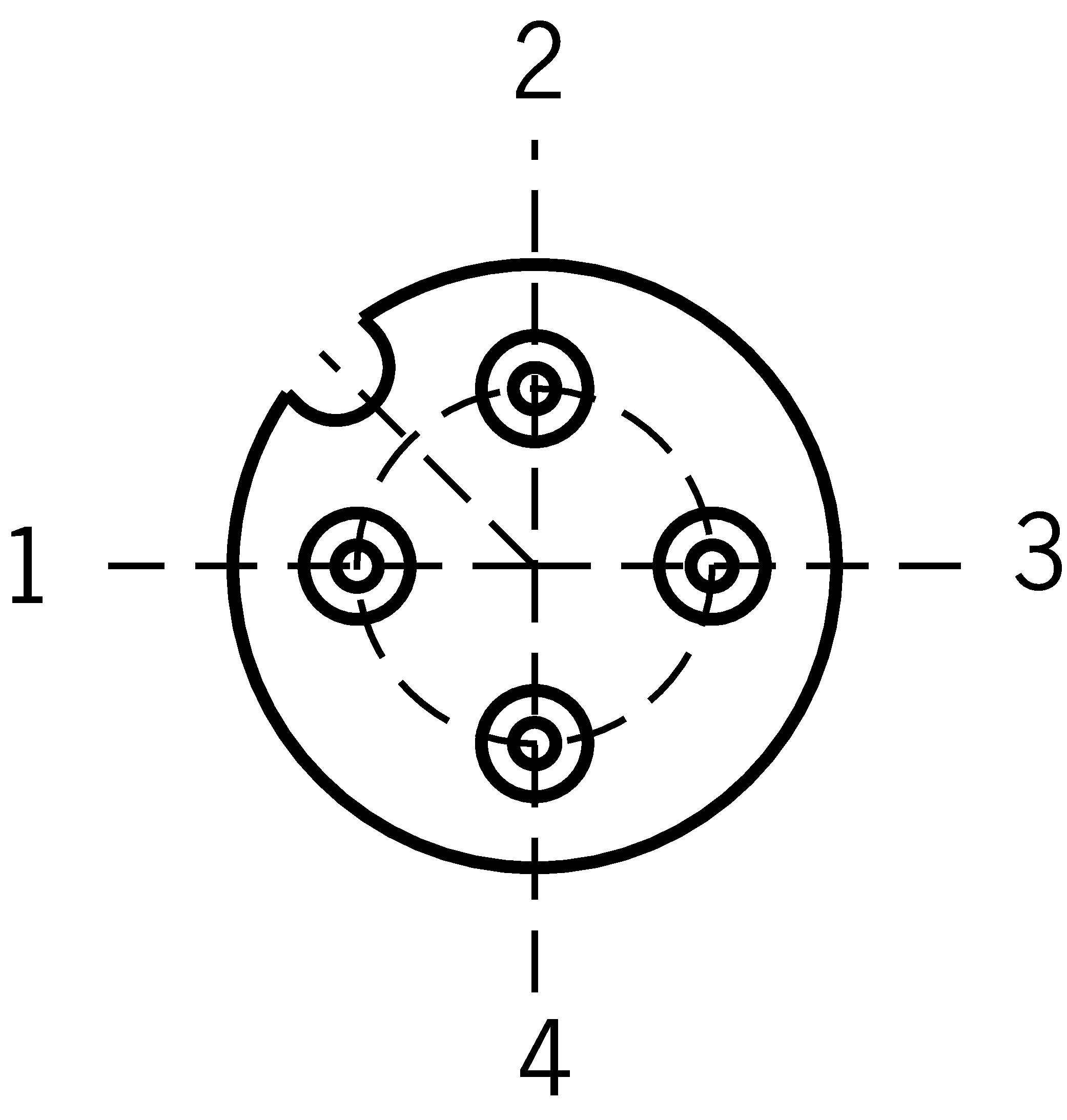

Connector assignment (view of connection side)
Connector assignment (view of connection side)

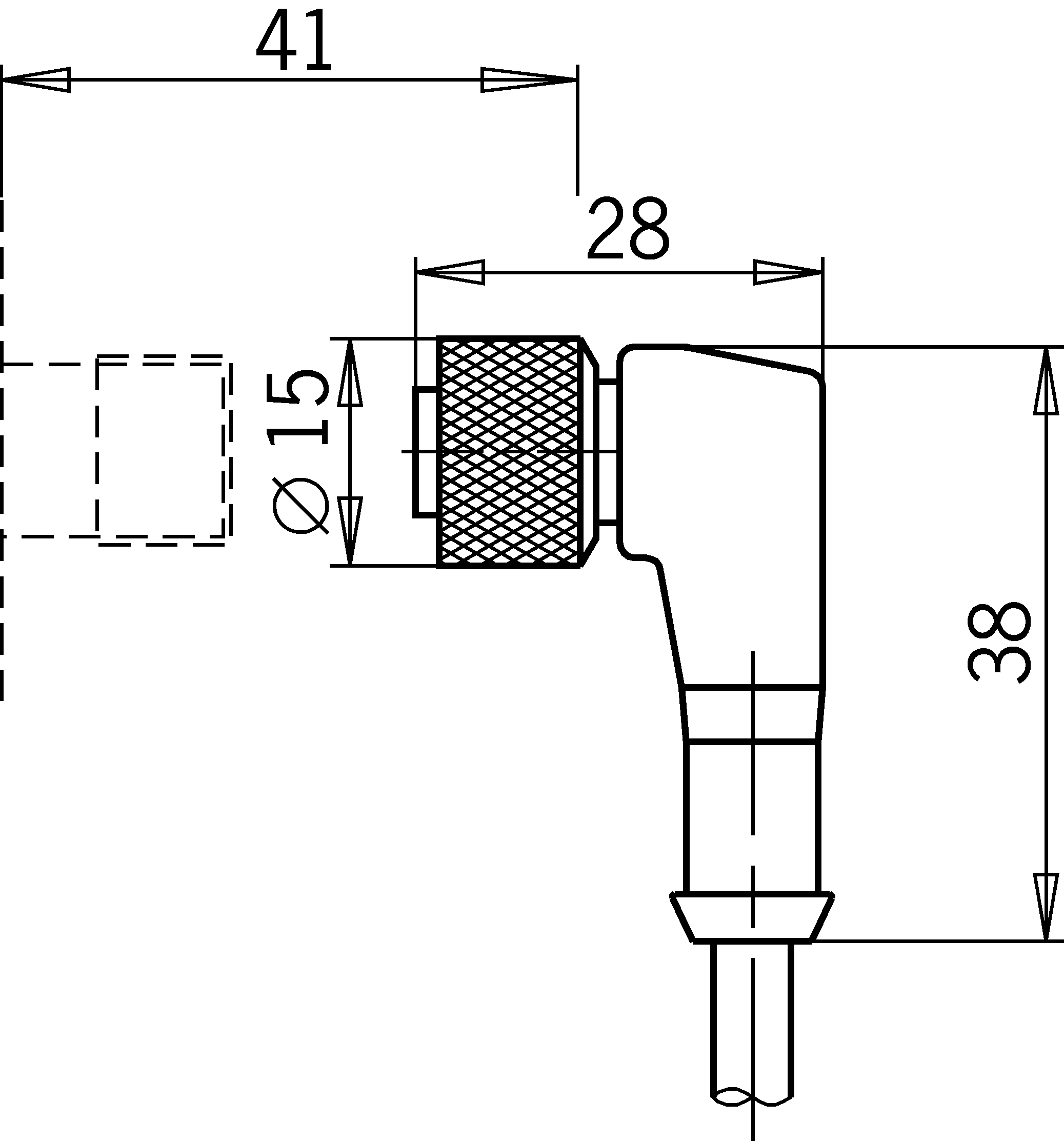

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E155795_3/2

Electrical connection values

Rated voltage
DC 250 V
Test voltage 2 kV (eff./60s)
Connection 1
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Conductor cross-section 0.34 mm²
Number of conductors 4
Dynamic bending radius 10 x cable diameter
Static bending radius 5 x cable diameter
Cable type straight
Cable diameter
approx. 4.7 mm
Cable length 5 m
Drag chain suitability yes
Cable ambient temperature (dynamic) -25 ... +80 °C
Cable ambient temperature (static) -25 ... +80 °C
Material
Sheath PUR
Connection 2
Conductor end trimmed smooth
Connection type flying lead
Connection 1
Connection type Plug connector M12x1
Connection type Female plug
Tightening torque 0.5 Nm
Cable outlet Angle
Number of pins 4
Degree of protection IP67 (Only in the screwed tight state with the relating mating components)
Plug lock Screw connection
Material
Plug housing TPU
Plug lock CuZn

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 035618
Item designation C-M12F04-04X034PU05,0-GA-035618
Gross weight 0,17kg
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
