CTM-LBI-BR-U-ZZ-SA-P-161640 (Order no. 161640)

Transponder-coded safety switch CTM-LBI-BR, M12, hygienic version

  • Safety switch with guard locking and integrated evaluation electronics
  • Series connection (full diagnostics possible in combination with ESM-CB)
  • Short circuit monitoring
  • 2 safety outputs (semiconductor outputs)
  • Bistable guard locking
  • Category 4/PL e according to EN ISO 13849-1
  • Actuating force 26 N
  • Extraction force 18 N
  • Plug connector M12, 8-pin
  • Unicode
  • Hygienic version
CTM-LBI-BR-U-ZZ-SA-P-161640 (Order no. 161640)

Description

Unicode evaluation

Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected.

Guard locking type

CTM‑LBIGuard locking operated by means of input signal.

This type of guard locking has a function to prevent

  • persons from unintentionally locking themselves inside if the safety door is open in case of a power failure or if the machine is switched off.
  • the deactivation of the activated guard locking in case of a power failure.

Connector assignment

Plug connector (view of connection side)

Pin

Designation

Function

Conductor coloring of connecting cable

1

FI1B

Enable input, channel 2

WH

2

UB

Operating voltage, 24 V DC

BN

3

FO1A

Safety output, channel 1

GN

4

FO1B

Safety output, channel 2

YE

5

OD/C

Door monitoring output/communication

GY

6

FI1A

Enable input, channel 1

PK

7

0 V

Operating voltage, 0 V

BU

8

IMP

Control input of guard locking solenoid

RD

Dimension drawing
Dimension drawing

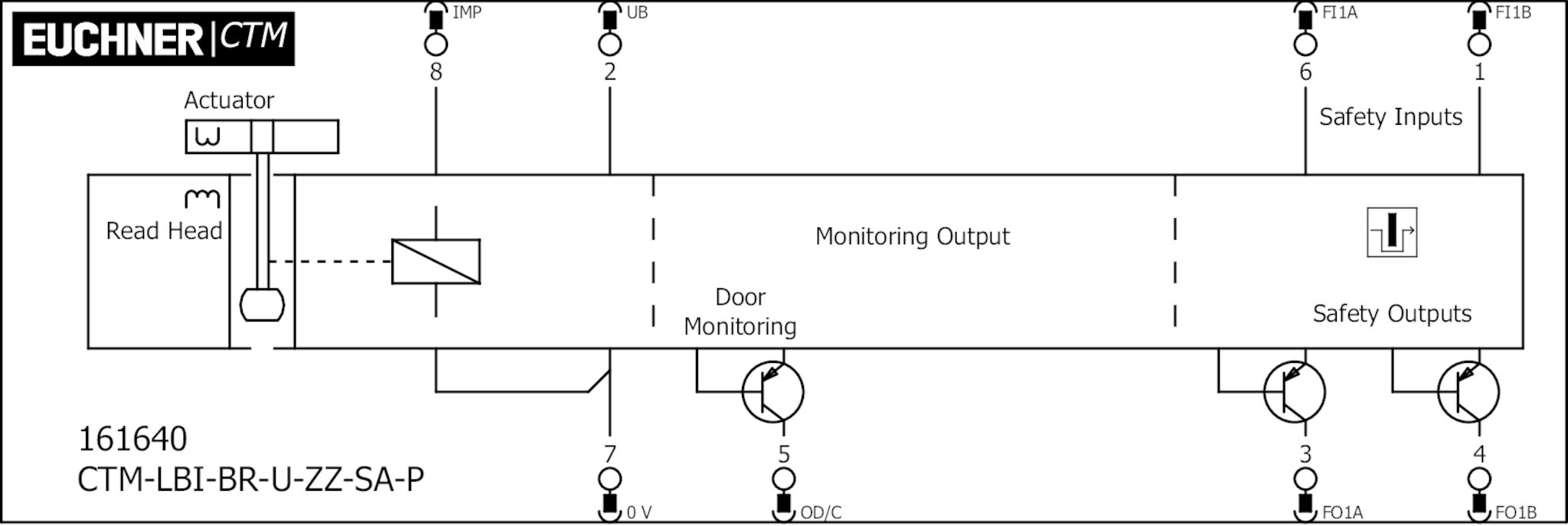

Wiring diagram
Wiring diagram

Dimension drawing

Dimension drawing
1LEDs

Wiring diagram

Wiring diagram

Technical data

Approvals

Zulassung c_UL_us LISTED Class 2 or LV/C

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Material
Seals Fluorinated rubber (FKM)
Safety switch housing Fiber glass reinforced thermoplastic
Weight
Net 0,16 kg
Ambient temperature
At UB = 24V DC -20 ... +60 °C
Degree of protection IP65/IP67/IP69/IP69K (Screwed tight plug connector/mating component)
Mechanical life 1 x 106
Installation orientation Any
Ready delay 5,5 s
Switching frequency max.0,25 Hz
Connection Plug connector M12, 8-pin
Approach speed max.20 m/min
Guard locking principle BiState
Locking force Fmax 1300 N
Locking force FZh 1000 N
Extraction force 18 N
Actuating force 26 N
Overtravel 2 mm

Electrical connection ratings

Current consumption max.7 mA Safety inputs Fl1A/Fl1B
Fusing
External (operating voltage UB) 0,7 ... 8 A
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 0,5 kV
Connection rating
at max. switching frequency 3 W
Solenoid duty cycle 100 %
Degree of contamination (external, according to EN 60947-1)
Industry 3
Safety class
EN IEC 61140 III
Switching load DC 24V, UL Class 2 (Alternatively see operating instructions)
Safety outputs FO1A / FO1B
Extension of risk time according to EN 60947-5-3 max.10 ms
Test pulses max.0,3 ms (Applies for a load with C ≤ 30nF and R ≤ 20kOhm)
Test-pulse interval 100 ms
Type of output 2 semiconductor outputs, p-switching, short circuit-proof
Switching current
Per safety output FO1A / FO1B 1 ... 150 mA
Output voltage
HIGH U(FO1A) / U(FO1B) UB-1,5 ... UB V DC
LOW U(FO1A) / U(FO1B) 0 ... 1 V DC
Utilization category acc. to EN 60947-5-2
DC-13 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads)
Off-state current Ir max.0,25 mA
Risk time according to EN 60947-5-3
Single device max.200 ms
Turn-on time max.400 ms
Discrepancy time
Both safety outputs max.10 ms In acc. with EN 60947-5-3
Monitoring output OD/C
Type of output p-switching, short circuit-proof
Switching current 1 ... 50 mA
Output voltage 0,8xUB ... UB V DC
Solenoid IMP
Current consumption
Guard locking not active (open) 20 ... 50 mA
Input voltage
Guard locking active (closed) 0 ... 5 V DC
Guard locking not active (open) 20,4 ... 26,4 V DC
Operating voltage UB
Operating voltage DC
UUB 24 V DC -15% ... +15% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Current consumption
IUB at operating voltage UB = 24 V max.500 mA

Work area

Repeat accuracy R
According to EN 60947-5-2 10 %

Other

For the approval acc. to UL the following applies Operation only with UL class 2 power supply, or equivalent measures see operating instructions

Reliability values according to EN ISO 13849-1

Monitoring of guard locking
Category 4
Performance Level PL e
PFHD 4.52 x 10 -9
Control of the guard locking
Category 3
Performance Level PL d
PFHD 1.03 x 10 -7
Mission time 20 y
