MCM-MLI-YE6E6A4A4-PA-163584 (Order no. 163584)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

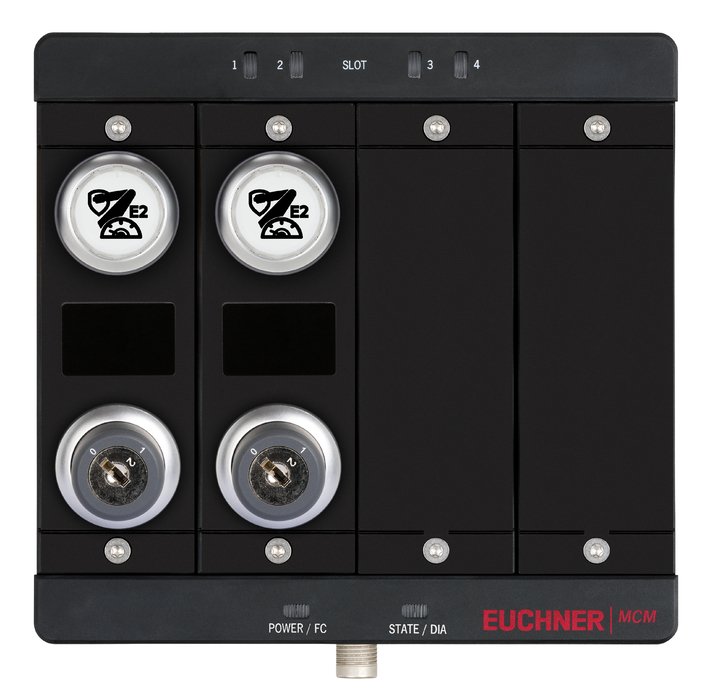

Expansion module MCM-MLI... (2 white covers for indicators, 2 key-operated rotary switches)

Function expansion for bus module MBM and locking module MGB2-L.-MLI
Four slots for mounting submodules
Category 4/PL e for the evaluation of all safety functions
2 white covers for indicators, 2 key-operated rotary switches
2 blanking covers
Submodule connection type: N/P
Compatible with all Modular devices

MCM-MLI-YE6E6A4A4-PA-163584 (Order no. 163584)

Description

Function

The MCM Modular can be connected directly or remotely to the bus module and in this way can be operated as a control terminal. It can also be used to extend the control features on a locking module. The MCM Modular offers four slots for mounting submodules.

Installation orientation	any
Shock and vibration resistance	Acc. to EN IEC 60947-5-3
Ambient temperature
at U_B = 24 V DC	-30 ... +55 °C
Material	Fiber glass reinforced plastic

Connecting cable
MLI	5-pin, M12x1
Rated voltage	36 V
Rated voltage	30 V
Nominal current
at 40 °C	4 A
Degree of contamination according to EN 60664-1	3

Ambient temperature	-30 ... +55 °C
	Connection 1
Connection type	2x M4 screws
Connection type	Male plug
Number of pins	5
Degree of protection	IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles	100
Material
Plug housing	Plastic
	Connection 2
Connection type	Screw terminal
Connection type	Male plug
Type specification	M12 EN 61076-2-101 / A-coded
Number of pins	5
Degree of protection	IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles	100
Material
Plug lock	die-cast zinc, nickel plated
Plug housing	Plastic, die-cast zinc, nickel plated

Rated insulation voltage U_i	75 V
Rated impulse withstand voltage U_imp	0.5 kV
EMC protection requirements	EMC Directive 2014/30/EU
Safety class	III
Current consumption	max. 75 mA
Degree of contamination (external, according to EN 60947-1)	3

Switching frequency	0.25 Hz
Mechanical life	1 x 10⁶
Shock and vibration resistance	Acc. to EN IEC 60947-5-3
Degree of protection	IP65 (This is the case only in the closed state with correctly mounted connecting cables and submodules.)
Ambient temperature
at U_B = 24 V DC	-25 ... +55 °C
Material
Housing	Fiber glass reinforced plastic, die-cast zinc, nickel plated

Mission time	20 y
PFH_D	2.82 x 10^-9 (Fixed failure rate without consideration of faults in wearing parts)
Safety Integrity Level	SIL 3 (EN 62061:2005)

Item	Extras	Color	Version	Switching element
1	printed	white	Cover for indicators	2NO
2	17.5x27 mm		Position for slide-in label
3	E2		Key-operated rotary switch

Current consumption	max. 12 mA
	Controls and indicators
Breaking capacity	max. 0.25 W
Switching voltage	24 V
Switching current	5 ... 10 mA
LED power supply	24 V DC

	Key-operated rotary switch
B₁₀
Key-operated rotary switch	0.03 x 10⁶

Ordernumber	163584
Item designation	MCM-MLI-YE6E6A4A4-PA-163584
Gross weight	1,365kg
Customs tariff number	85371098
ECLASS	27-24-26-03 Field bus, decentralized peripheral - module carrier

Color	black
Additional feature
	incl. fixing screws
	incl. seal
