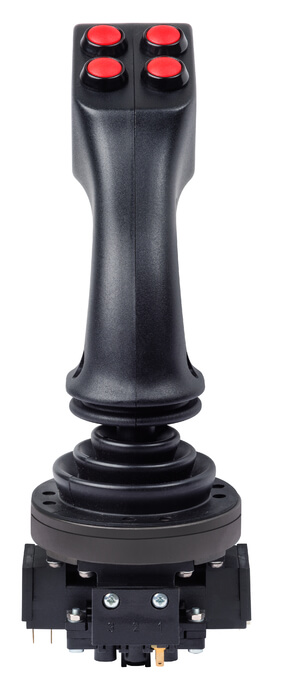

KCA1E1E1E1E0000DWP189 (Order no. 105798)

Series KC...

  • Tab connector 2.8 x 0.5
  • 4 actuating directions
  • Bellows for panel mounting (W)
  • Bellows for surface mounting (X)
KCA1E1E1E1E0000DWP189 (Order no. 105798)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram
Switching functions
Switching functions

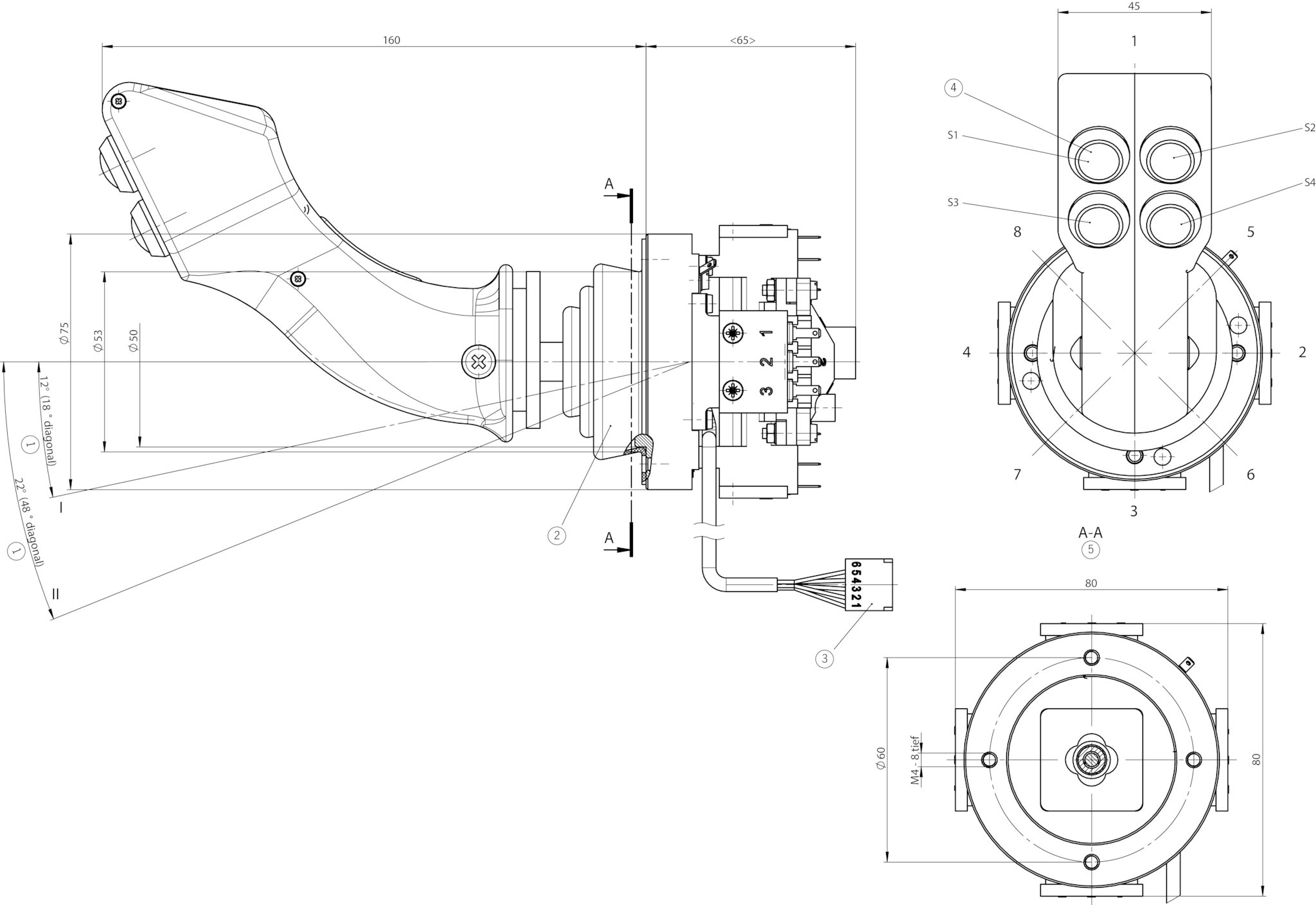

Dimension drawing

Dimension drawing
1Diagonal
2Bellows: “W” for flush mounting; “X” for surface mounting
3Connector housing DUBOX, 6-pin
4Pushbutton red
5Shown without bellows

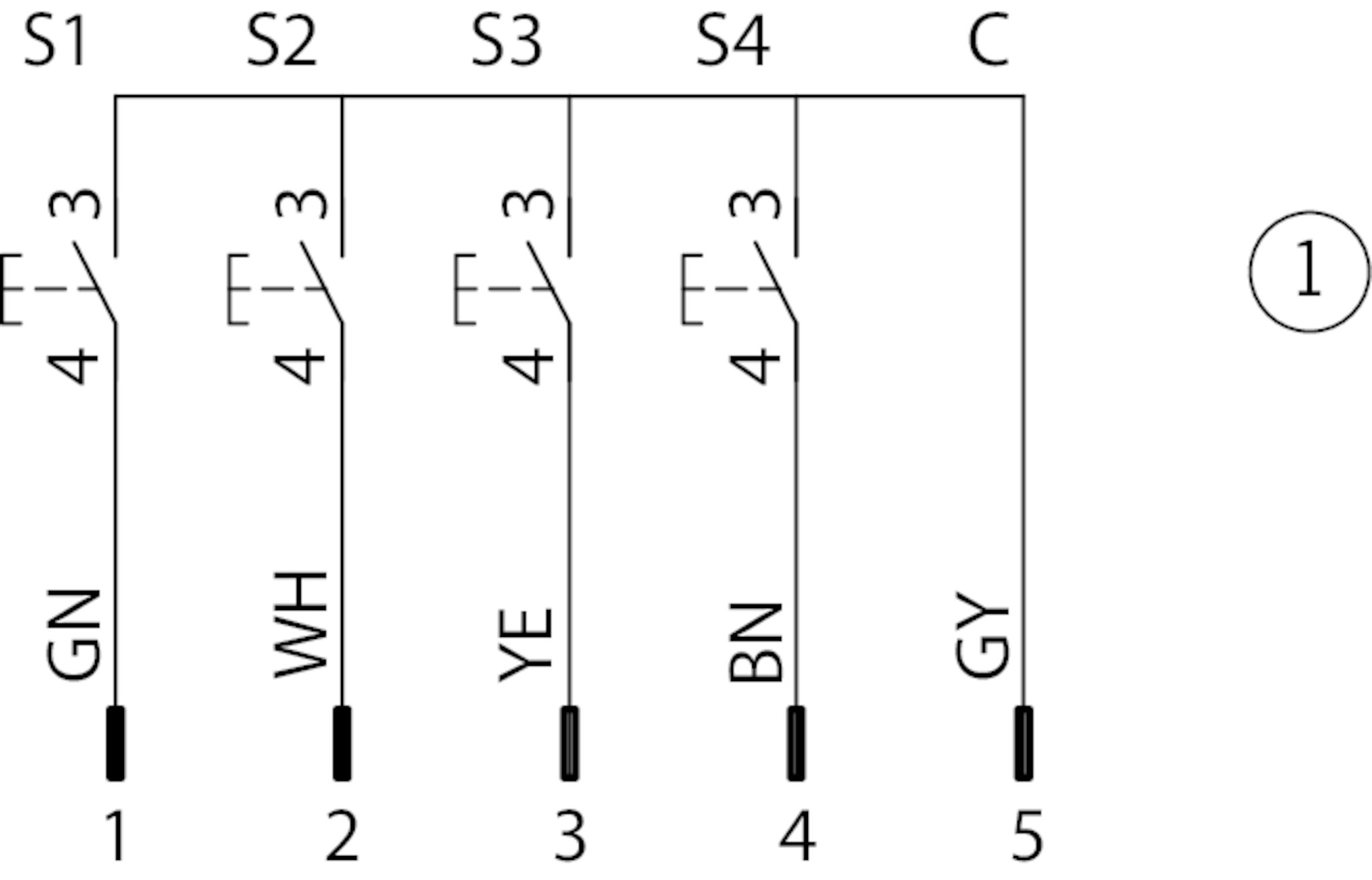

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram
1Cable: 5 x 0.14 mm²; cable length: 500 mm

Switching functions

Switching functions

Technical data

Approvals

Zulassung EACZulassung CCC

Mechanical values and environment

Material
Bellows elastomer black (PAK arm)
Switching lever galvanized steel
Housing thermoplastic/aluminum
Weight
Net 0,75 kg
Ambient temperature -5 ... 65 °C Spring return version
Degree of protection
on the front with bellows IP65 (Version W)
Mechanical life 1 x 106
Contact material Silver alloy
Switching principle changeover contact C IEC 947-5-1 (Snap-action contact element, design ES556)
Mounting method Panel cut-out depending on version X or W (See drawing panel cut-out)
Number of monitoring contacts max.4 4 (4 directions x 1 switching element)
Connection Tab connector 2.8 x 0.5 IEC 760
Actuating directions max.4 Max. 3 positions (0-1-2) possible per type and direction
Pushbutton in handle
Switching principle 1 contact (4x)
Mechanical life
(at 0.7A / 250V AC) 0,05 x 106

Electrical connection ratings

Utilization category acc. to EN 60947-5-1
AC-15 230V 4A
DC-13 24V 2A
Short circuit protection according to IEC 60269-1 Slow-blow T6 / quick-blow F10
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching voltage min.10 V
Switching current
(at 24V) min.12 mA
Pushbutton in handle
Switching voltage min.10 V
Switching current
(at 24V) min.12 mA
Utilization category acc. to EN 60947-5-1
DC-13 24 V 0.1 A

Other

Additional feature
Comment: Pushbutton in handle
Bellows W for flush mounting
